Database Design

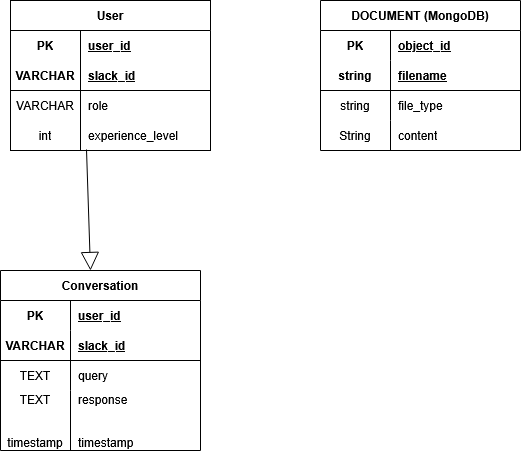

Entity-Relationship Diagram
Database Overview
The system uses two databases:
- SQL Database (PostgreSQL/MySQL) - Stores users and conversations
- NoSQL Database (MongoDB) - Stores documents and their content
Entities
User (SQL)
Stores user profile and role information.
| Column | Type | Key | Description |
|---|---|---|---|
| user_id | VARCHAR | PK | Unique user identifier |
| slack_id | VARCHAR | Slack user ID | |
| role | VARCHAR | User role (user/admin) | |
| experience_level | INT | User's experience level |
Conversation (SQL)
Stores chat history between users and the bot.
| Column | Type | Key | Description |
|---|---|---|---|
| user_id | VARCHAR | PK | User identifier |
| slack_id | VARCHAR | Slack user ID | |
| query | TEXT | User's question | |
| response | TEXT | Bot's response | |
| timestamp | TIMESTAMP | When conversation occurred |
Document (MongoDB)
Stores uploaded documents and files.
| Field | Type | Key | Description |
|---|---|---|---|
| _id | ObjectId | PK | Unique document identifier |
| filename | String | Original file name | |
| file_type | String | File type (pdf, docx, txt) | |
| content | String | Full text content |
