System Block Diagram
Overview

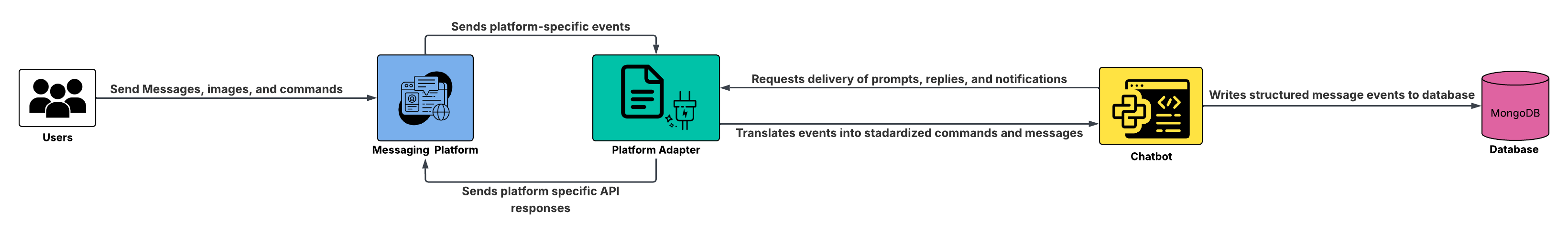

This is an illustration of the command flow between each component of VibeCheck. The system is Slack-specific, having users interact in Slack. Slack Bolt app handles routing and command events, the chatbot core runs business logic, and MongoDB persists activity and analytics.
System Flow
Users communicate with VibeCheck through Slack. Slack delivers message events and slash commands through Socket Mode/Web API flows. The chatbot processes commands, schedules prompts, selects prompt content, generates responses, sends messages back to Slack, and stores activity data in MongoDB.
Component Details
Slack API
-
Slack Bolt The Slack Bolt API allows VibeCheck to handle event routing, command events, and the ability to respond to user actions. Slack Bolt also includes a socket mode adapter, allowing communication without HTTP.
-
Slack SDK The Slack SDK is a library for Slack API calls, providing the core functionality of how VibeCheck interacts with the platform. Such functionalities include posting prompts, responding to channels, and retrieving server data
Chatbot
The chatbot, VibeCheck, is the core project. It processes slash commands, contains a scheduler to trigger daily prompts, and logs responses to prompts.
Slack Integration Layer
Slack Bolt and Slack SDK provide the single integration layer for this project. The chatbot core is designed for Slack events and slash commands only.
