Database Schema

Overview

The database is preferred for authentication and persistence purposes. The initial design of the schema is imported from the better-auth library as that is being used for signing up and authenticating users to our platform. This includes tables: User, Account, Session, and Verification.

After that the database was expanded to allow for teams, game rooms, and results, further expanding to party and friendship systems as well.

Tables

| Name | Description| |...|...| | User | Individual user | | Session | Authenticated sessions for user | | Account | Allows for multiple accounts under same user | | Verification | Verification for better auth | | InfraTestKV | Testing in Infra environment | | Friendship | A friendship between two users, holds invite info as well | | Party | Party system, each user has one party | | PartyMember | Users who have joined someone else's party | | GameRoom | Game information | | Team | Team information | | TeamPlayer | Users in teams information (role) | | Problem | Problem information for the games | | ProblemTest | "Hidden" test cases | | GameTest | Saved test cases during game | | GameResult | Final information for game |

Enums

| Name | Description| |...|...| | FriendshipStatus | Whether friendship is active, declined, or in the invite step| | GameStatus | Status of a game room | | GameType | Type of game (two player vs four player) | | Role | Coder, Tester, or Spectator | | ProblemDifficulty | Easy, Medium, or Hard |

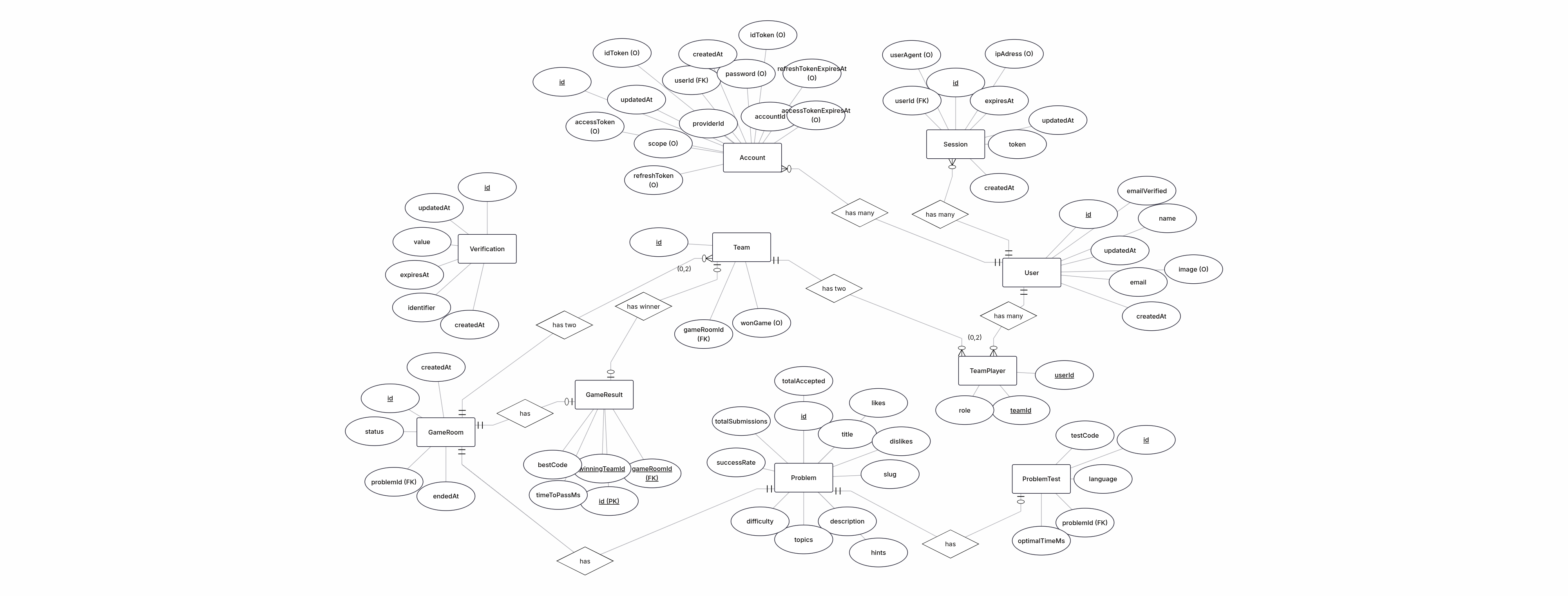

PostgreSQL ERD
